The JC1206PD0224 is a compact silicon 1206 SMD photodiode designed for infrared sensing and optoelectronic detection applications. It features high photosensitivity, fast response, a minimum reverse breakdown voltage of 33V, maximum reverse dark current of 10nA, and typical total capacitance of only 1pF. The device uses a silicon die with a water-clear lens and is supplied in a Pb-free, RoHS-compliant surface-mount package suitable for automated PCB assembly.
- Description
Description
1206 SMD Silicon Photodiode Overview
The JC1206PD0224 is a compact 1206 SMD silicon photodiode designed for optical detection and infrared sensing. The device combines high photosensitivity and fast response in a surface-mount package suitable for compact PCB integration.
The photodiode uses silicon die material and a water-clear lens. According to the datasheet, typical applications include infrared applied systems, optoelectronic switches and smoke alarms.
Key Features
- 1206 SMD photodiode
- Silicon die material
- High photosensitivity
- Fast response time
- Water-clear lens
- Minimum 33V reverse breakdown voltage
- Maximum 10nA reverse dark current
- Typical total capacitance: 1pF
- Pb-free construction
- Compliant with EU RoHS requirements
- Tape-and-reel packaging for automated assembly
Product Specifications
| Parameter | Specification |
|---|---|
| Model | JC1206PD0224 |
| Product Type | 1206 SMD Photodiode |
| Die Material | Silicon |
| Lens Color | Water Clear |
| Reverse Voltage | 33 V |
| Reverse Breakdown Voltage | Min. 33 V |
| Reverse Dark Current | Max. 10 nA |
| Open Circuit Voltage | Typ. 390 mV |
| Short Circuit Current | Typ. 2 µA |
| Reverse Light Current | Typ. 2 µA |
| Total Capacitance | Typ. 1 pF |
| Power Consumption | 150 mW |
| Operating Temperature Range | -25°C to +85°C |
| Storage Temperature Range | -40°C to +100°C |
| Compliance | Pb-free / RoHS compliant |
Detailed Electrical Characteristics
The following detailed electrical characteristics are specified at Ta = 25°C. Test conditions are retained from the original datasheet without altering the source values.
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Reverse Dark Current | ID | VR = 10V, Ee = 0mW/cm² | — | — | 10 | nA |
| Reverse Breakdown Voltage | V(BR)R | IR = 100µA, Ee = 0mW/cm² | 33 | — | — | V |
| Open Circuit Voltage | Voc | T = 2856K, Ee = 5mW/cm² | — | 390 | — | mV |
| Short Circuit Current | Isc | T = 2856K, Ee = 5mW/cm² | — | 2 | — | µA |
| Reverse Light Current | IL | VR = 5V, T = 2856K, Ee = 5mW/cm² | — | 2 | — | µA |
| Total Capacitance | CT | VR = 5V, Ee = 0mW/cm², f = 1MHz | — | 1 | — | pF |

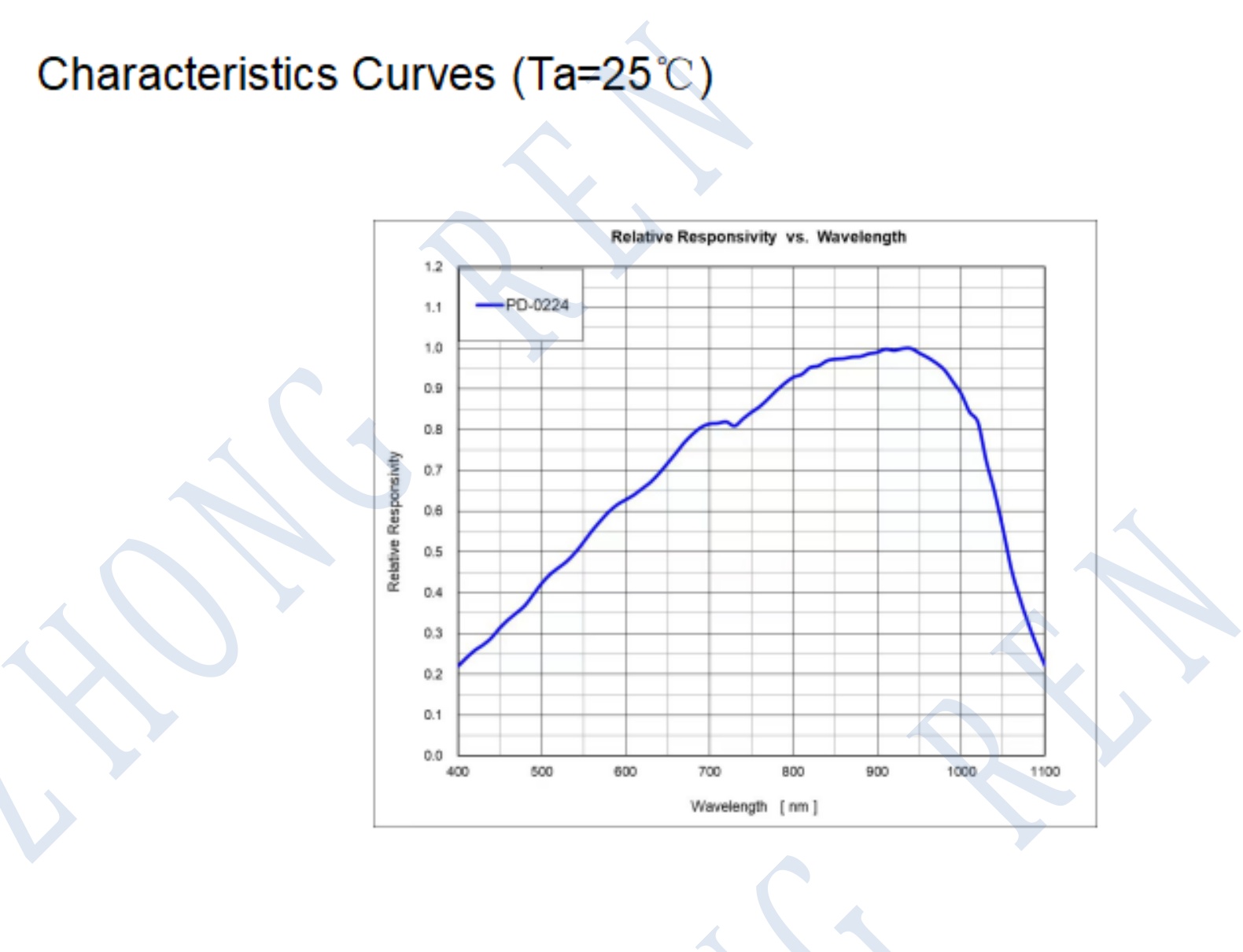

Relative Spectral Responsivity
The datasheet provides a Relative Responsivity vs. Wavelength characteristic curve at Ta = 25°C. The plotted response increases through the visible and near-infrared region, reaches its highest relative responsivity in the near-infrared portion of the chart, and then decreases toward the long-wavelength end of the plotted range.
The curve should be used as a typical characteristic reference rather than interpreted as a guaranteed minimum or maximum spectral response specification.
Absolute Maximum Ratings
| Symbol | Parameter | Rated | Unit |
|---|---|---|---|
| VR | Reverse Voltage | 33 | V |
| PM | Power Consumption | 150 | mW |
| Top | Operating Temperature Range | -25 to +85 | °C |
| Tstg | Storage Temperature Range | -40 to +100 | °C |

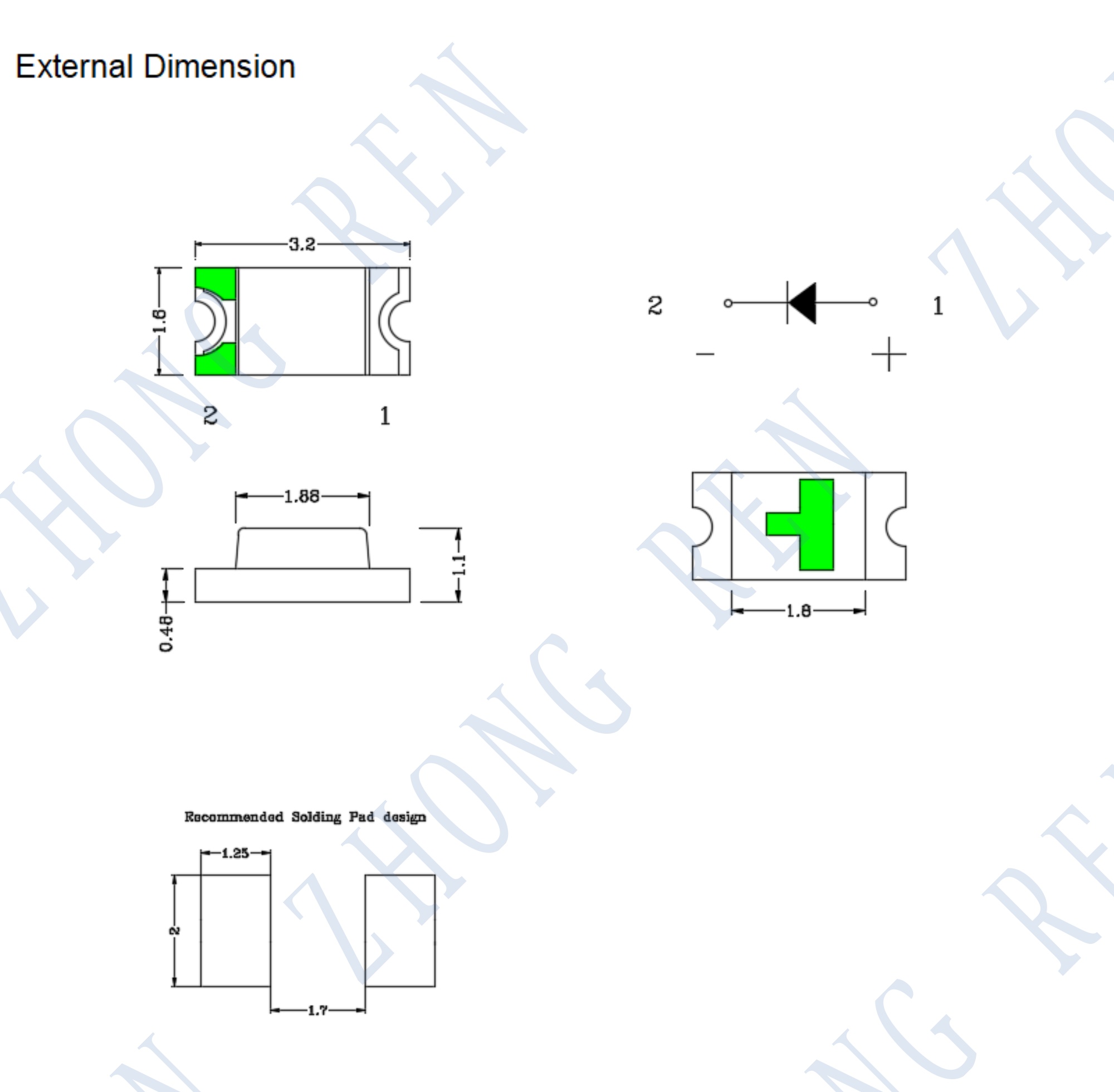

1206 SMD Package Dimensions
The JC1206PD0224 is supplied in a compact 1206 surface-mount package. The original dimensional drawing provides package dimensions, device polarity and the recommended PCB soldering pad layout.
| Package Parameter | Dimension |
|---|---|
| Package Length | 3.2 mm |
| Package Width | 1.6 mm |
| Lens Width | 1.88 mm |
| Overall Height | 1.1 mm |
| Base Height | 0.48 mm |
Typical Applications
The original datasheet lists the JC1206PD0224 for several optical detection applications where a compact silicon photodiode is required.
- Infrared applied systems
- Optoelectronic switches
- Smoke alarms

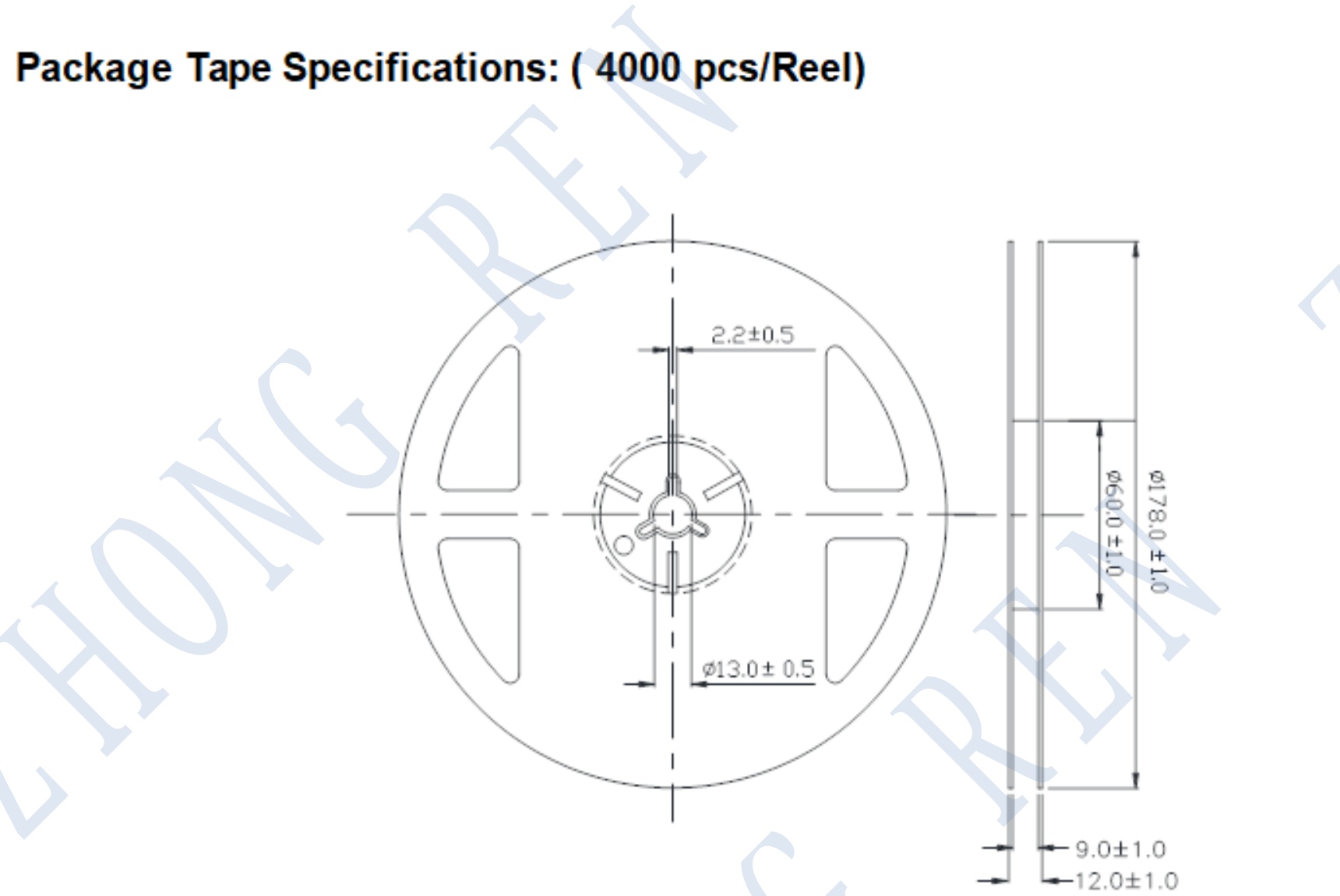

Tape and Reel Packaging

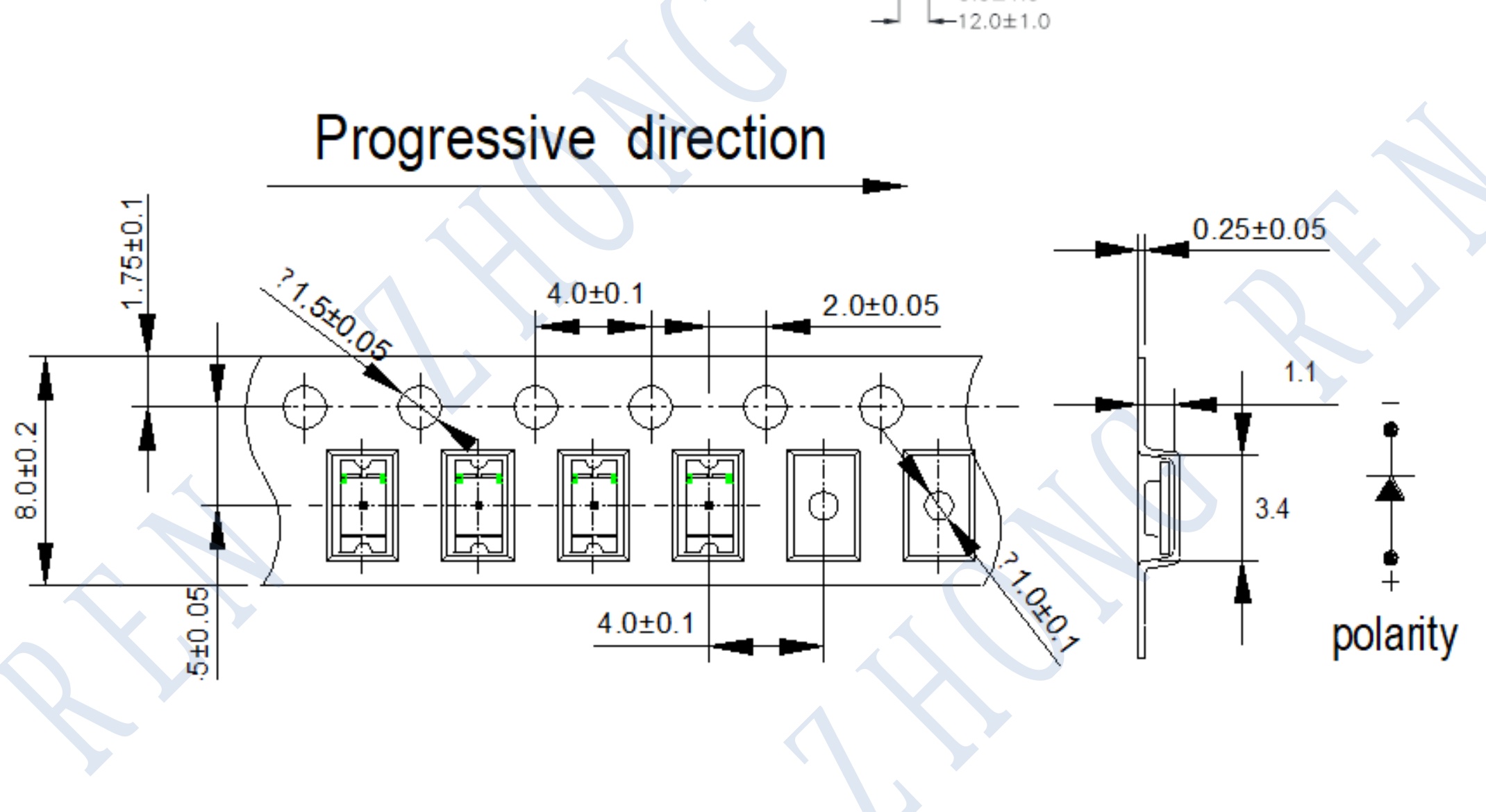

The JC1206PD0224 is supplied in tape-and-reel packaging with 4000 pieces per reel. The original packaging drawing also provides the progressive direction, carrier tape dimensions and photodiode polarity for automated surface-mount assembly.
Storage and Handling
The datasheet specifies moisture-controlled storage and handling requirements before and after opening the package. These requirements should be followed before PCB mounting and soldering.
- Do not open the moisture-proof bag before the devices are ready for use.
- Before opening, store at 30°C or below and 60% RH or below.
- The maximum storage period before opening the package is 1 year.
- After opening, keep the devices at 30°C / 35% RH or below.
- Use the devices within 7 days after opening.
- If baking is required before mounting, use 60 ± 5°C for 12 hours.
Soldering Precautions
Proper handling and soldering conditions are important for maintaining device reliability. The datasheet specifies the following precautions for PCB assembly.
- Use an appropriate current-limiting circuit where required by the application.
- Avoid instantaneous high voltage during circuit turn-on and turn-off.
- Reflow soldering should not be performed more than two times.
- Do not apply mechanical stress to the device during soldering.
- Do not warp the circuit board before it has returned to normal ambient conditions after soldering.
