InGaAs PIN Photodiode Methane Sensor TO Package (900–1700nm) Overview
The InGaAs PIN Photodiode Methane Sensor is designed for high-sensitivity optical detection in gas sensing and laser monitoring applications. Featuring a wide spectral response range from 900 nm to 1700 nm, this photodiode is optimized for near-infrared detection, including methane (CH₄) sensing systems based on TDLAS technology.
Built with a large active area and front-illuminated structure, this device ensures high responsivity and stable signal detection across key wavelengths such as 1310 nm, 1550 nm, and 1650 nm. The TO52 package provides compact integration and reliable performance in industrial and scientific environments.
With low dark current, fast response speed, and high bandwidth, this photodiode is well suited for laser monitoring, optical sensing, and precision detection applications. It is an ideal companion component for DFB laser diodes in gas detection modules.
Key Features
- Wide spectral response from 900 nm to 1700 nm
- High responsivity up to 1.05 A/W
- Low dark current down to 3 nA
- High-speed response with 0.1 GHz bandwidth
- Large active area for enhanced signal detection
- TO52 compact package for easy integration
- Anti-reflection coated flat window
- Nitrogen-filled for improved stability
Applications
- Methane (CH₄) gas sensing systems
- TDLAS detection modules
- Laser diode monitoring
- Optical power detection
- Industrial and environmental sensing
Technical Parameters
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Wavelength Range | λ | – | 900 | – | 1700 | nm |
| Responsivity | Re | VR = 5V, λ = 1310 nm | 0.9 | 0.95 | – | A/W |
| Responsivity | Re | VR = 5V, λ = 1550 nm | 1.0 | 1.05 | – | A/W |
| Responsivity | Re | VR = 5V, λ = 1650 nm | 1.0 | 1.05 | – | A/W |
| Dark Current | Id | VR = 5V, 25°C | – | – | 3 | nA |
| Capacitance | C | VR = 5V, f = 1 MHz | – | – | 20 | pF |
| Bandwidth (-3 dB) | BW | – | – | 0.1 | – | GHz |
All data are tested at 25°C
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Reverse Voltage | VR | – | 20 | V |
| Storage Temperature | Ts | -40 | 125 | °C |
| Operating Temperature | Top | -20 | 75 | °C |
| ESD Susceptibility | ESD | – | 500 | V |

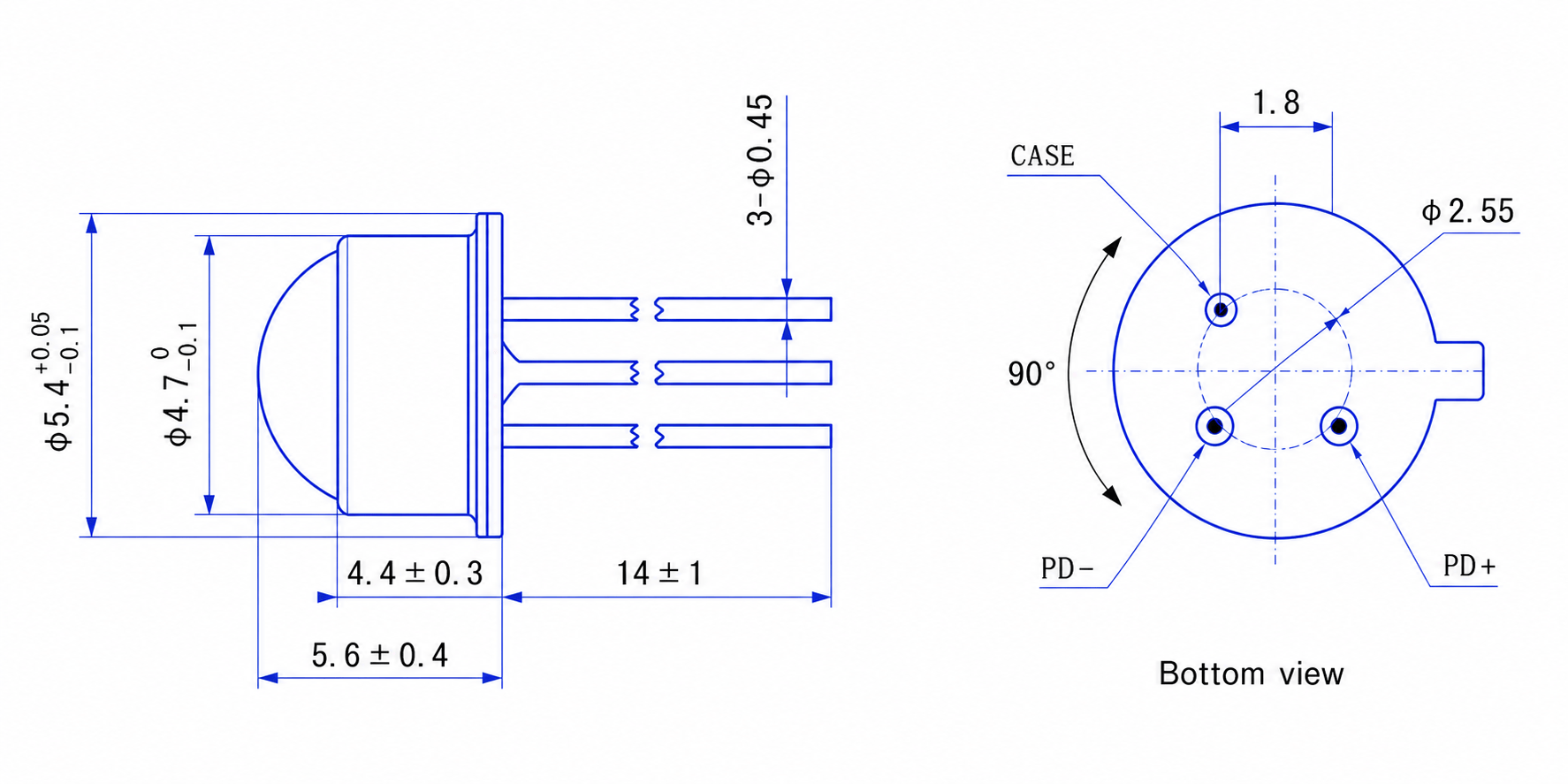

Product Size
Photodiode Receiver Design
When integrating the detector, verify spectral sensitivity across the target wavelength, the published electrical test conditions, receiver noise budget and TO-package mechanical interface.
Frequently Asked Questions
What type of photonic device is InGaAs PIN Photodiode Methane Sensor TO Package (900–1700nm)?
InGaAs PIN Photodiode Methane Sensor TO Package (900–1700nm) belongs to the InGaAs PIN Photodiode product family and is used for photodetection applications.
What wavelength or spectral range does InGaAs PIN Photodiode Methane Sensor TO Package (900–1700nm) use?
The specified wavelength or spectral range is 900–1700 nm. Refer to the technical specifications above for operating conditions and applicable tolerances.
What package is available for InGaAs PIN Photodiode Methane Sensor TO Package (900–1700nm)?
The product is listed in TO Package format. Check the package drawing and pin or fiber details above before integration.
What applications are associated with InGaAs PIN Photodiode Methane Sensor TO Package (900–1700nm)?
The product is listed for Gas Sensing / TDLAS, Optical Detection. Suitability should be evaluated against the required optical and electrical specifications.
