A VCSEL, or vertical-cavity surface-emitting laser, is a semiconductor laser diode in which the optical cavity is oriented perpendicular to the semiconductor wafer and the laser beam exits through the surface of the chip.
That geometry is the key difference between a VCSEL and a conventional edge-emitting laser diode. In an edge emitter, light propagates mainly along the plane of the wafer and exits through a side facet. In a VCSEL, light resonates vertically between two highly reflective distributed Bragg reflector mirrors and exits upward or downward through the chip surface.
A typical VCSEL therefore combines:
- A short vertical optical cavity
- A semiconductor active region, often containing quantum wells
- A top distributed Bragg reflector (DBR)
- A bottom DBR
- Electrical contacts
- Current and optical confinement structures
- A surface-emission aperture
This architecture gives VCSELs several useful characteristics, including compact size, surface-normal emission, convenient wafer-level testing, high modulation capability in many designs, and the ability to fabricate large two-dimensional arrays.
VCSELs are now used in short-reach optical communication, proximity sensing, time-of-flight measurement, 3D sensing, facial recognition, robotics, industrial sensing and other compact optoelectronic systems.
The most important point for an OEM engineer is:
VCSEL describes the laser architecture. It does not describe the package. A VCSEL can be supplied as a bare chip, SMD device or another packaged component, and it may contain one emitter or many emitters in an array.
If you need the broader semiconductor-laser foundation first, see What Is a Laser Diode? How Semiconductor Laser Diodes Work.
What Does VCSEL Stand For?
VCSEL stands for Vertical-Cavity Surface-Emitting Laser.
The word vertical refers to the optical resonator being oriented substantially perpendicular to the wafer surface. Cavity refers to the short resonator that provides optical feedback. Surface-emitting means that the useful laser output leaves through the top or bottom surface of the semiconductor device rather than through a cleaved edge.
A concise definition is:
A VCSEL is a semiconductor laser diode with a vertical optical cavity and a beam that exits perpendicular to the wafer surface.
This is why VCSEL should not be used as a synonym for an SMD, TO-can or other package type.

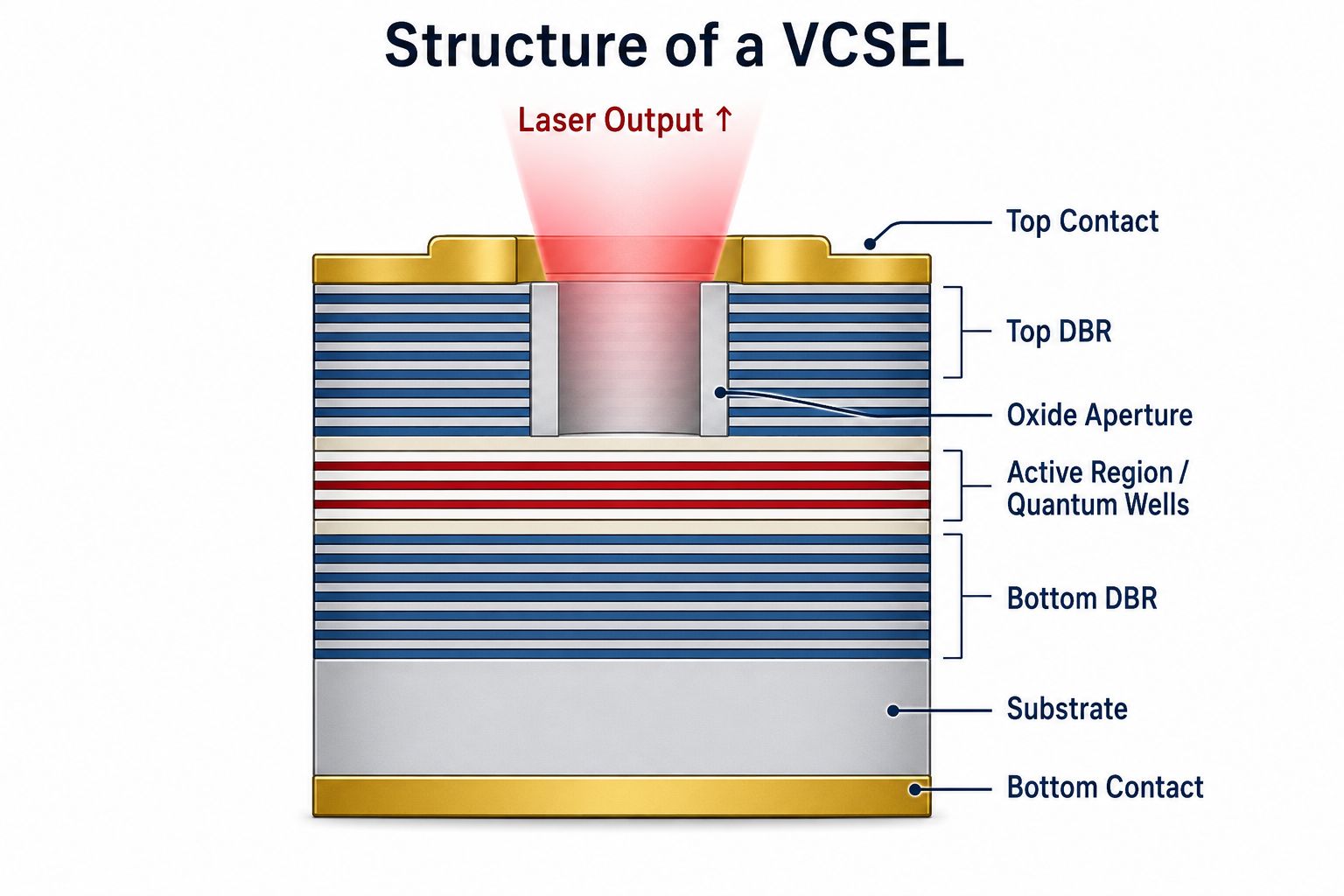

What Is Inside a VCSEL?
The internal structure of a VCSEL is different from that of a typical edge-emitting FP or DFB laser.
A simplified VCSEL stack contains several functional regions.
Top Contact
The top electrical contact provides one side of the current path into the device. The contact geometry is designed so that electrical injection does not block the intended optical aperture.
Top DBR Mirror
The upper mirror is usually a distributed Bragg reflector made from many alternating semiconductor layers with different refractive indices.
These layers are designed so reflected optical waves reinforce one another around the intended wavelength. The result is very high reflectivity with relatively low cavity loss.
Oxide Aperture or Other Current-Confinement Structure
Many VCSEL designs use an oxide aperture to confine current and the optical mode near the center of the device.
The aperture influences:
- Threshold current
- Optical mode size
- Emission aperture
- Beam profile
- Output power
- Transverse-mode behavior
Smaller apertures can support stronger mode control, while larger apertures can allow greater optical power but may support multiple transverse modes.
Active Region and Quantum Wells
The active region provides optical gain. Modern VCSELs commonly use quantum wells placed where the optical field is strong inside the cavity.
When electrons and holes are injected into this region, recombination can generate photons. Above threshold, stimulated emission amplifies the resonant optical field.
Bottom DBR Mirror
The lower DBR works together with the upper DBR to form the vertical resonator.
Because the available gain length is very short, VCSEL cavities generally require mirrors with very high reflectivity.
Substrate and Bottom Contact
The substrate provides mechanical support and participates in the electrical and thermal path. The lower electrical contact completes the current path through the semiconductor structure.
For deeper technical background, see the RP Photonics Encyclopedia article on Vertical Cavity Surface-emitting Lasers.
Why Does a VCSEL Need DBR Mirrors?
A VCSEL cavity is extremely short compared with many edge-emitting semiconductor laser cavities.
That short gain path means each optical round trip provides only limited amplification. To reach lasing threshold efficiently, the resonator therefore needs very low optical loss.
A distributed Bragg reflector solves this problem by using many alternating layers of materials with different refractive indices. The optical thickness of these layers is selected so reflections from many interfaces add constructively around the design wavelength.
The top and bottom DBRs therefore:
- Provide the strong optical feedback required for laser oscillation.
- Help define the spectral region supported by the vertical cavity.
DBR mirrors are one of the defining structural features of a conventional monolithic VCSEL.

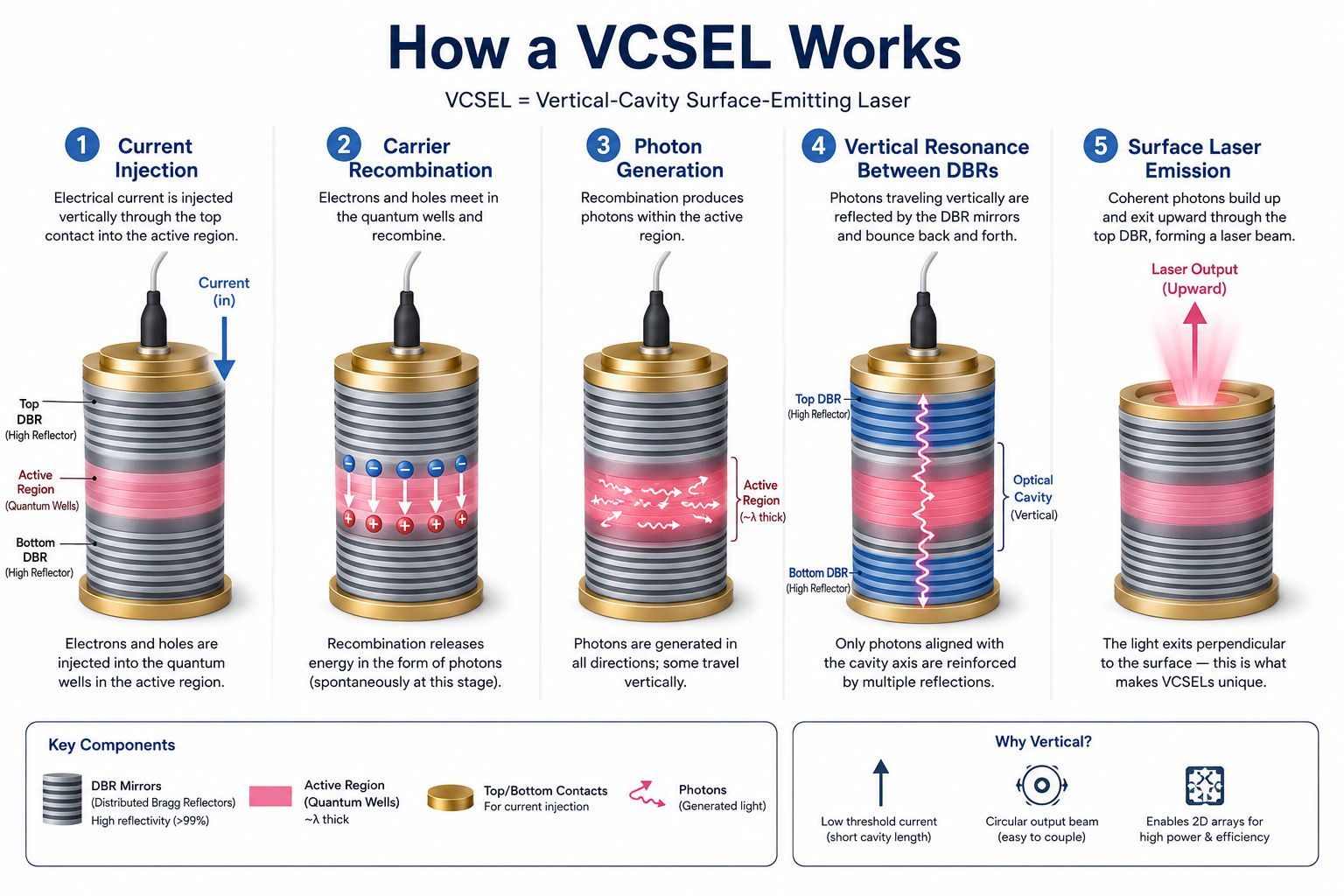

How Does a VCSEL Work?
The semiconductor-laser physics is similar to other laser diodes, but the cavity direction is different.
Step 1: Current Is Injected
Forward current flows through the semiconductor structure. Current-confinement structures direct the injected carriers toward the active area.
Step 2: Electrons and Holes Enter the Active Region
Electrons and holes accumulate in the quantum-well active region, increasing the carrier density available for optical gain.
Step 3: Carrier Recombination Generates Photons
Electron-hole recombination generates photons. At low current, spontaneous emission is important. As the current rises, optical gain increases.
Step 4: Light Resonates Vertically Between the DBRs
Photons aligned with the cavity axis travel between the top and bottom Bragg mirrors and repeatedly pass through the gain region.
The cavity reinforces the optical modes that satisfy its resonance conditions.
Step 5: Laser Light Leaves the Surface
When gain exceeds the total optical loss, the VCSEL reaches threshold and begins laser oscillation. A controlled portion of the optical field passes through the output-side DBR and leaves perpendicular to the wafer surface.
In short:
Current injection → carrier recombination → stimulated emission → vertical resonance → surface laser output
The stimulated-emission physics is discussed in more detail in our laser diode working-principle guide.

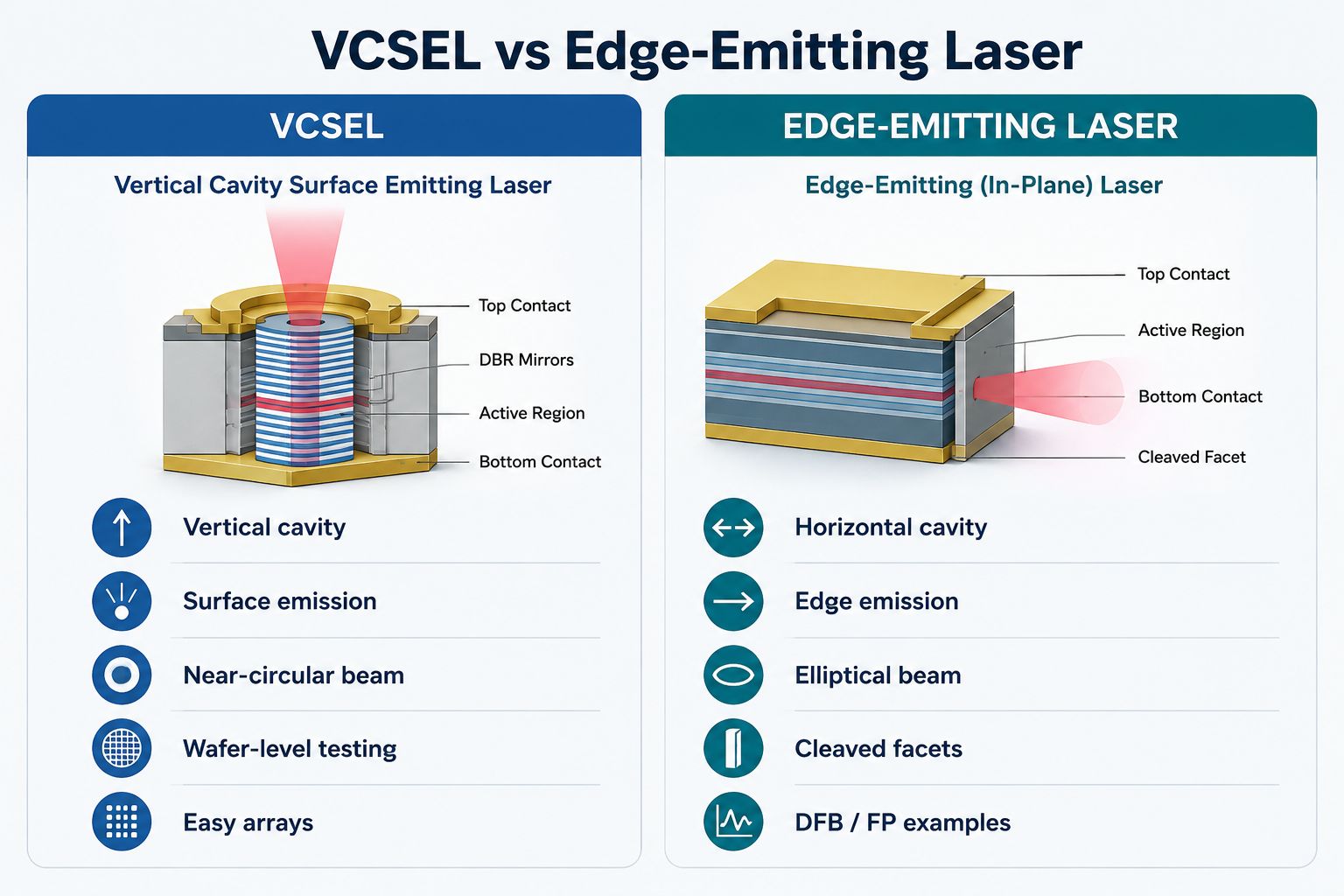

VCSEL vs Edge-Emitting Laser Diode
VCSELs and edge emitters are both semiconductor lasers, but their cavity orientation affects fabrication, beam geometry, array design and packaging.
| Feature | VCSEL | Edge-Emitting Laser |
|---|---|---|
| Cavity orientation | Perpendicular to wafer | Parallel to wafer |
| Light output | Through chip surface | Through chip edge |
| Typical cavity | Very short | Longer |
| Main feedback | DBR mirror stacks | Facets, gratings or other in-plane structures |
| Beam geometry | Often more rotationally symmetric | Commonly elliptical |
| Wafer-level optical testing | Highly practical | More dependent on later processing |
| 2D array integration | Natural | More difficult |
| Individual-emitter power | Often modest | Can be much higher |
| Common examples | VCSEL | FP, DFB and other edge emitters |
| Typical uses | Datacom, sensing, ToF, 3D sensing | Telecom, TDLAS, pumping, industrial optics |
The distinction is not “VCSEL versus DFB” at the same classification level. VCSEL describes a vertical-cavity architecture, while DFB describes a wavelength-selective feedback architecture that is commonly implemented in an edge-emitting laser.
VCSEL vs FP vs DFB Laser Diode
FP Laser Diode
A Fabry–Pérot laser diode commonly uses the chip facets to form an in-plane resonator. Several longitudinal modes may fall within the gain region, so the optical spectrum can contain multiple peaks.
DFB Laser Diode
A DFB laser uses a periodic grating to provide wavelength-selective feedback. This architecture is widely used where narrow spectral output and precise wavelength behavior are critical, such as TDLAS and wavelength-sensitive optical communication.
VCSEL
A VCSEL uses a short vertical cavity between DBR mirrors and emits through the surface.
Its practical strengths include:
- Surface emission
- Compact dimensions
- Wafer-level testing
- High-speed modulation capability in many designs
- Natural 2D array formation
- Easy integration into compact sensing systems
For a detailed comparison between common edge-emitting architectures, see DFB Laser Diode vs FP Laser Diode: OEM Selection Guide.
A useful classification rule is:
FP, DFB and VCSEL describe semiconductor laser architectures. SMD, TO-can and butterfly describe package formats.
Single-Mode vs Multimode VCSEL
VCSEL does not automatically mean single-mode.
A VCSEL can support different transverse modes depending on the aperture, cavity design, drive current and temperature.
Single-Mode VCSEL
A single-mode VCSEL is designed to restrict the transverse optical mode.
Potential benefits include:
- Better beam quality
- More predictable far-field distribution
- Easier focusing
- Higher spatial coherence
These devices can be useful in precision sensing, some communication links and optical measurement.
Multimode VCSEL
A larger aperture can support multiple transverse modes and may provide more optical power.
Multimode devices are often useful for:
- Illumination
- Proximity sensing
- ToF
- 3D sensing
- Short-range optical systems
Engineers should review actual far-field and divergence data rather than assuming every VCSEL produces the same beam.
Single VCSEL Emitter vs VCSEL Array
One of the biggest strengths of VCSEL technology is the ability to scale from a single emitting aperture to many emitters on one die.
Single Emitter
A single VCSEL emitter is useful when the system needs:
- Low or moderate optical power
- A compact focused source
- A single optical channel
- Point sensing
- Short-range proximity detection
VCSEL Array
A VCSEL array contains many emitters on the same semiconductor chip.
Arrays can be designed as:
- Small emitter groups
- 1D arrangements
- 2D matrices
- Addressable emitter regions
- High-power illumination arrays
The combined emission can increase total available optical power and support illumination patterns for applications such as:
- 3D sensing
- Flood illumination
- Structured light
- Time-of-flight systems
- Machine vision
- Robotics
- LiDAR-related illumination
As array size increases, engineers must also manage higher total current and greater thermal load.
For further technical background, see the RP Photonics Encyclopedia article on VCSEL Arrays.
Why Are VCSELs Well Suited to Arrays?
The output aperture is defined on the wafer surface rather than at a cleaved chip edge.
That makes it practical to pattern many emitters in two dimensions using semiconductor wafer-processing techniques.
This supports:
- Dense emitter placement
- Repeated photolithographic structures
- High manufacturing density
- Custom array shapes
- Patterned illumination
- Integration with microlenses and diffractive optics
This ability to build two-dimensional emitter arrays is one of the major reasons VCSELs became important in high-volume 3D-sensing and illumination systems.
Why Is the VCSEL Beam Often Easier to Integrate?
Conventional edge emitters often have strongly different fast-axis and slow-axis divergence, producing an elliptical beam.
VCSELs often produce a more rotationally symmetric beam, which can simplify:
- Collimation
- Focusing
- Lens coupling
- Multimode-fiber coupling
- Integration with micro-optics
However, it is not correct to assume every VCSEL has a perfect circular Gaussian beam.
The actual far-field distribution depends on:
- Aperture size
- Transverse modes
- Current
- Temperature
- Array layout
High-power multimode devices and arrays can have very different beam profiles from small single-mode VCSELs.
Common VCSEL Wavelengths: 850 nm and 940 nm
850 nm and 940 nm are two especially important near-infrared VCSEL wavelengths in commercial systems.
850 nm VCSEL
850 nm VCSELs are strongly associated with short-reach optical communication and multimode fiber.
Typical application areas include:
- Data-center interconnects
- Short-reach fiber links
- High-speed optical communication
- Multimode-fiber systems
- Optical sensing
Lumi offers the 850nm 1206 SMD VCSEL Laser Diode – 1206ULM850-L.
Key specifications include:
| Parameter | Specification |
|---|---|
| Typical wavelength | 850 nm |
| Wavelength range | 830–860 nm |
| Package | 1206 SMD |
| Typical optical output | 2 mW at 6 mA |
| 3 dB modulation bandwidth | Minimum 3 GHz at 6 mA |
| Typical viewing angle | 12° |
This is an example of a compact VCSEL intended for surface-mount optical integration where high-speed performance matters.
940 nm VCSEL
940 nm VCSELs are widely used in active optical sensing.
Typical application areas include:
- Proximity sensing
- Time-of-flight distance measurement
- 3D sensing
- Structured light
- Facial-recognition illumination
- Automotive in-cabin sensing
- Robotics
- Industrial sensing
Lumi’s 940nm 1616 SMD VCSEL & Photodiode – 1616VCA940R8-PD0224-Z integrates a VCSEL emitter and a photosensitive diode in one compact SMD package.
Typical VCSEL-side values include:
| Parameter | Typical Value |
|---|---|
| Center wavelength | 940 nm |
| Optical power | 7.2 mW |
| Operating current | 10 mA |
| Forward voltage | 1.8 V |
| Divergence | 23° |
| Power conversion efficiency | 40% |
The product shows how VCSEL architecture can be combined with detector functionality in a compact surface-mount component.
Why Is 940 nm Common in 3D Sensing?
940 nm is useful because it fits a practical ecosystem of emitters, silicon receivers, optical filters and compact sensing optics.
Invisible Near-Infrared Illumination
940 nm light is outside the normal visible range for the human eye, making it useful for active sensing without visible illumination.
Invisible, however, does not mean automatically eye-safe. Safety depends on accessible emission, pulse conditions, optics, beam geometry and exposure.
Silicon Receiver Compatibility
Silicon photodiodes, SPADs and CMOS image sensors can detect light in this near-infrared region.
Optical Filtering
A narrow bandpass filter around the illumination wavelength can reject a portion of broadband ambient light and improve signal-to-background performance.
Compact VCSEL Arrays
VCSEL arrays can be combined with diffusers, microlenses or diffractive optical elements to generate flood or patterned illumination.
The wavelength alone does not determine system performance. Receiver sensitivity, pulse width, field of view, optical efficiency and environmental conditions all matter.
VCSELs in Time-of-Flight Systems
In a ToF system, a VCSEL can act as the active illumination source.
Depending on the architecture, the transmitter may use:
- Pulsed illumination
- Modulated illumination
- Flood illumination
- Multiple VCSEL emitters
- Diffusers
- DOE optics
The receiver then analyzes the returned light to estimate distance.
VCSELs are attractive because they can combine compact size, fast electrical response and array scalability.
The final range and accuracy depend on the complete transmitter-receiver system rather than on the VCSEL alone.
VCSELs in 3D Sensing and Structured Light
A VCSEL source can be combined with projection optics to illuminate a scene.
In structured-light systems, a known optical pattern is projected onto a target. A camera measures the pattern deformation and reconstructs depth information.
In flood-illumination systems, the source is spread over a larger field of view.
Typical applications include:
- Face recognition
- Depth cameras
- Object scanning
- Machine vision
- Human-machine interfaces
- Robot perception
VCSEL arrays are useful because they combine semiconductor-scale emitters with optical structures that can shape or distribute the output.
VCSELs in Optical Communication
850 nm VCSELs have a long history in short-reach multimode-fiber communication.
Typical environments include:
- Data centers
- Server interconnects
- Switching systems
- Storage networks
- Short-distance optical links
Important parameters can include:
- Modulation bandwidth
- Rise and fall time
- Relative intensity noise
- Spectral width
- Optical output
- Threshold current
- Temperature behavior
For high-speed optical links, engineers should evaluate the complete packaged device and driver conditions rather than relying on wavelength alone.
VCSELs in LiDAR and Ranging
VCSELs can be used as illumination transmitters in some LiDAR and ranging systems.
Potential advantages include:
- Fast pulsed operation
- Compact dimensions
- Array scalability
- Electronic control of multiple emitters
- Compatibility with solid-state optical systems
However, not every LiDAR architecture is well suited to VCSEL technology.
Applications requiring very high peak power, long range, narrow divergence or coherent FMCW operation may use other laser architectures.
Automotive, Robotics and Industrial Sensing
940 nm VCSEL systems can support applications such as:
- Driver monitoring
- Occupant monitoring
- Gesture sensing
- Robot navigation
- Object detection
- Short-range depth sensing
- Machine vision
In these markets, wavelength is only one selection criterion.
OEM engineers also need to consider:
- Temperature range
- Pulse current
- Qualification requirements
- Driver design
- Receiver sensitivity
- Field of view
- Contamination
- Optical safety
Main Advantages of VCSEL Technology
Surface-Normal Emission
The beam exits perpendicular to the chip surface, simplifying integration with many lenses, fibers and wafer-level optics.
Compact Size
The vertical resonator allows very small semiconductor emitters, which is valuable in embedded sensing and communication systems.
Wafer-Level Testing
Surface access allows important optical testing before final package assembly, supporting high-volume screening.
Easy Array Scaling
Multiple emitters can be fabricated on the same die to increase total power or generate custom illumination patterns.
High Modulation Capability
Many VCSEL designs support fast direct modulation, making them important in short-reach optical communication.
Low Threshold Current in Many Designs
The short cavity and effective current confinement can support relatively low threshold current, although the actual value depends on device design and temperature.
High-Volume Manufacturing Potential
The planar structure is compatible with wafer-level semiconductor fabrication and scalable production.
A review in Light: Science & Applications discusses small footprint, scalability, low power consumption and high modulation bandwidth as important properties behind advanced VCSEL photonics: Harnessing the capabilities of VCSELs.
Limitations and Engineering Trade-Offs
Limited Power from One Small Emitter
A single VCSEL emitter usually provides moderate power. Higher total output is often achieved with arrays.
Thermal Management in Arrays
More emitters mean more total current and heat.
Thermal design affects:
- Output power
- Wavelength
- Efficiency
- Reliability
- Emitter uniformity
Multimode Operation
Larger apertures can support multiple transverse modes, affecting beam quality.
Temperature Dependence
Wavelength, threshold and optical power vary with temperature, so the real operating environment should be included in device evaluation.
Not Optimal for Every Narrow-Linewidth Application
Precision spectroscopy, TDLAS or wavelength-defined communication may require a DFB or another architecture optimized specifically for narrow spectral behavior.
Driver Complexity
High-power arrays can require large peak currents and low-inductance driving circuits.
Laser Safety
Near-infrared output can be invisible. System-level eye-safety analysis is therefore essential for finished products.
VCSEL Architecture, Package and Array Are Different Concepts
These terms describe three different design levels.
VCSEL Defines the Laser Architecture
VCSEL tells you that the device uses:
- A vertical optical cavity
- DBR mirrors
- Surface emission
Bare Chip or SMD Defines the Product and Package Form
A VCSEL can be supplied as a bare semiconductor chip or integrated into a surface-mount package.
Packaging can add:
- Mechanical protection
- PCB-compatible electrical contacts
- Defined optical aperture
- Production-friendly handling
- Additional components
For more information about chip-level sourcing, see the Lumi Laser Chip OEM page.
Single Emitter or Array Defines Emitter Configuration
A single-emitter VCSEL has one active aperture.
A VCSEL array contains multiple apertures on one chip.
This describes emitter arrangement, not package type.
The key rule is:
VCSEL = laser architecture; SMD = package; array = emitter configuration.
Lumi VCSEL Product Examples
850 nm 1206 SMD VCSEL — 1206ULM850-L
The 1206ULM850-L combines an 850 nm single-channel VCSEL with a compact 1206 surface-mount package.
It provides a typical optical output of 2 mW at 6 mA and a minimum 3 GHz modulation bandwidth at the same bias current.
This configuration is relevant to compact optoelectronic systems that need PCB-level assembly and high-speed optical performance.
940 nm 1616 SMD VCSEL + Photodiode — 1616VCA940R8-PD0224-Z
The 1616VCA940R8-PD0224-Z integrates a 940 nm VCSEL and photosensitive diode in a 1.6 × 1.6 mm SMD package.
This gives a useful real-world example of three separate design concepts:
940 nm VCSEL architecture → 1616 SMD package → integrated emitter + photodiode function
The emitter remains a VCSEL because of its internal laser architecture. The SMD body and photodiode integration describe packaging and functionality.
How to Choose a VCSEL for an OEM Project
1. Define the Wavelength
Select the wavelength according to the receiver, optics, transmission medium and application.
2. Define Optical Power
Clarify whether the project needs CW, average or peak pulsed power and where that power is measured.
3. Choose Single Emitter or Array
A single emitter may be sufficient for communication or point sensing. Arrays are useful when higher total power or broader illumination is needed.
4. Define Mode and Beam Requirements
Specify divergence, far-field pattern and beam-quality requirements where they matter.
5. Define CW or Pulsed Operation
State pulse width, duty cycle, repetition rate and peak current for pulsed sensing systems.
6. Define Modulation Requirements
High-speed communication systems may require multi-gigahertz modulation capability, while proximity sensors may prioritize other parameters.
7. Define the Optical Interface
Consider whether the VCSEL will work with a lens, fiber, diffuser, microlens array or DOE.
8. Choose the Package
After optical requirements are clear, select bare chip, SMD or another package form.
9. Define the Operating Temperature
Review threshold, wavelength and optical-power behavior across the intended environmental range.
10. Evaluate Laser Safety
Safety must be assessed using the complete optical system and drive conditions.
Frequently Asked Questions
What does VCSEL stand for?
VCSEL stands for Vertical-Cavity Surface-Emitting Laser.
Is a VCSEL a laser diode?
Yes. A VCSEL is a type of semiconductor laser diode with a vertical optical resonator and surface-normal output.
How does a VCSEL work?
Electrical current injects carriers into the active region. Recombination generates photons, which resonate vertically between DBR mirrors. Above threshold, stimulated emission amplifies the optical field and laser light exits through the surface.
Why does a VCSEL emit vertically?
Its optical cavity is oriented perpendicular to the wafer surface, so the resonant optical field and output beam propagate along that vertical axis.
What is a DBR mirror in a VCSEL?
A DBR is a multilayer reflector made from alternating materials with different refractive indices. It provides the very high reflectivity needed by the short VCSEL resonator.
What is the difference between a VCSEL and an edge-emitting laser?
A VCSEL emits through the wafer surface using a vertical cavity. An edge-emitting laser uses an in-plane cavity and emits through a chip edge.
What is the difference between a VCSEL and a DFB laser?
A conventional VCSEL uses a vertical cavity between DBR mirrors. A DFB laser usually uses an in-plane cavity with an integrated periodic grating for wavelength-selective feedback. DFB devices are especially useful when narrow linewidth and precise wavelength control are primary requirements.
Why is 940 nm commonly used for VCSEL sensing?
940 nm provides invisible near-infrared illumination, works with common silicon detectors and can be combined with optical filtering and compact sensing optics. It is widely used in proximity, ToF and 3D-sensing systems.
What is a VCSEL array?
A VCSEL array is a group of multiple VCSEL emitters fabricated on one semiconductor die to increase total power or provide a desired illumination pattern.
Is VCSEL a package type?
No. VCSEL describes the semiconductor laser architecture. SMD and TO-can describe packages, while single emitter and array describe emitter configuration.
From VCSEL Architecture to OEM Product Selection
The easiest way to understand a VCSEL is to remember three features:
Vertical cavity → DBR mirrors → surface emission
That architecture enables compact semiconductor sources, wafer-level testing, high-speed communication devices and scalable 2D arrays for sensing and illumination.
But the word VCSEL alone is not enough to select a component.
An OEM should still define:
- Wavelength
- Optical power
- CW or pulsed operation
- Single emitter or array
- Beam divergence
- Mode requirements
- Modulation bandwidth
- Package
- Operating temperature
- Driver conditions
- Optical interface
- Laser-safety requirements
Lumi supplies upstream laser components and packaged laser diodes for OEM applications, including compact 850 nm and 940 nm VCSEL products.
Explore the Lumi laser diode product range or contact Lumi with your target wavelength, optical power, package size, operating mode, volume and application requirements for project evaluation.
