Heating DFB 1650.9nm Laser Diode for Methane Gas Sensing TO Package Overview
The 1650.9nm Heating DFB Laser Diode is specifically designed for methane (CH₄) gas sensing applications based on tunable diode laser absorption spectroscopy (TDLAS). Featuring an integrated heating structure, this device ensures precise wavelength control and stable operation across a wide temperature range.
Operating at the characteristic methane absorption wavelength around 1650.9 nm, this DFB laser diode provides high sensitivity and accuracy for gas detection systems. Its low threshold current and high output stability enable efficient performance in compact sensing modules.
The TO56 package with a 5-pin configuration allows for easy integration into gas sensor systems, while offering excellent reliability and long-term stability. This device is ideal for industrial gas monitoring, environmental sensing, and safety detection applications where precision and reliability are critical.
Key Features
- Optimized 1650.9 nm wavelength for CH₄ gas detection
- Integrated heating structure for wavelength stability
- Low threshold current down to 10 mA
- High wavelength precision and stability
- Compact TO56 5-pin package
- Wide operating temperature range (-5°C to 75°C)
- High reliability for long-term sensing applications
Applications
- Methane (CH₄) gas sensing systems
- TDLAS gas detection modules
- Industrial gas monitoring
- Environmental monitoring systems
- Safety and leakage detection systems
Technical Parameters
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Threshold Current | Ith | 25°C | 10 | 15 | – | mA |
| Operating Voltage | Vop | Iop = 50 mA | 1.2 | 1.6 | – | V |
| Output Power | Po | Iop = 50 mA | 4 | 6 | – | mW |
| Slope Efficiency | SE | If = 25–65 mA | 0.15 | 0.2 | – | mW/mA |
| Center Wavelength | λc | Iop = 50 mA | 1649.9 | 1650.9 | 1651.9 | nm |
| SMSR | SMSR | Iop = 50 mA | – | 35 | – | dB |
| Temperature Coefficient | Tλ | Iop = 50 mA | – | 0.1 | – | nm/°C |
| Current Coefficient | Iλ | Iop = 50 mA | – | 0.02 | – | nm/mA |
| Resistance | Rs | – | – | 15 | – | Ω |
All data are tested at 25°C
Absolute Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Forward Current | If | – | 100 | mA |
| Laser Reverse Voltage | VRL | – | 2 | V |
| Operating Temperature | To | -5 | 75 | °C |
| Storage Temperature | TSTG | -40 | 100 | °C |

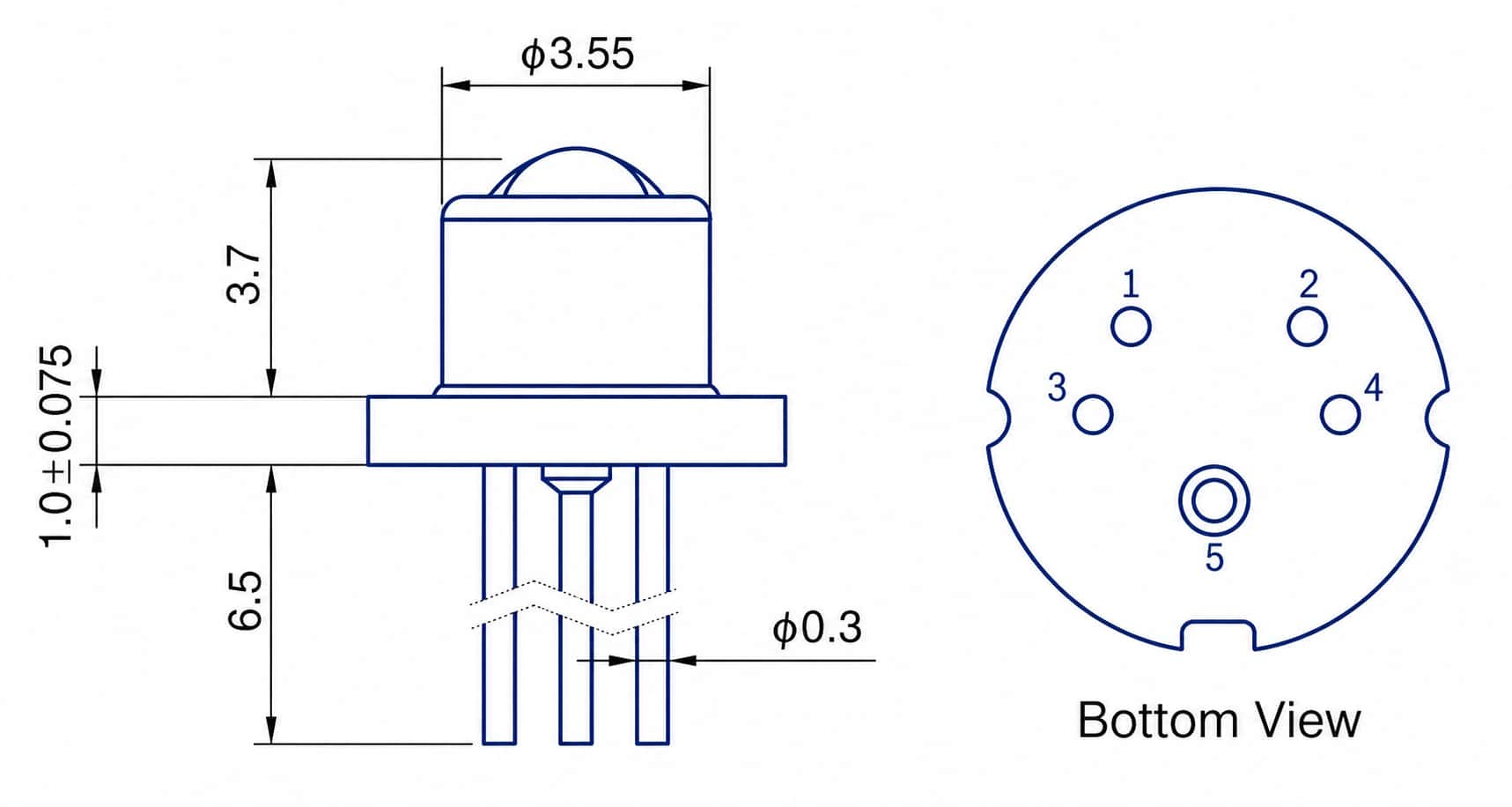

Product Size
Pin Diagram
| Pin | Function |
|---|---|
| 1 | R |
| 2 | Thermistor |
| 3 | LD (-) |
| 4 | LD (+) |
| 5 | GND |
DFB Laser Integration
For DFB laser selection, specify the target wavelength, required optical power, package, spectral characteristics and temperature-control requirements. Match the available wavelength-tuning conditions to the absorption line or optical system in the stated application.
Frequently Asked Questions
What type of photonic device is Heating DFB 1650.9nm Laser Diode for Methane Gas Sensing TO Package?
Heating DFB 1650.9nm Laser Diode for Methane Gas Sensing TO Package belongs to the DFB product family and is used for laser emission applications.
What wavelength or spectral range does Heating DFB 1650.9nm Laser Diode for Methane Gas Sensing TO Package use?
The specified wavelength or spectral range is 1650.9 nm. Refer to the technical specifications above for operating conditions and applicable tolerances.
What package is available for Heating DFB 1650.9nm Laser Diode for Methane Gas Sensing TO Package?
The product is listed in TO Package format. Check the package drawing and pin or fiber details above before integration.
What applications are associated with Heating DFB 1650.9nm Laser Diode for Methane Gas Sensing TO Package?
The product is listed for Gas Sensing / TDLAS. Suitability should be evaluated against the required optical and electrical specifications.
Related Technical Resources
Additional information
| Device Technology | DFB |
|---|---|
| Wavelength Band | 1600–1799 nm |
| Application | Gas Sensing / TDLAS |
| Package Type | TO Package |
| Device Function | Laser Emission |
| Wavelength / Spectral Range | 1650.9 nm |
| Target Gas | Methane (CH4) |
